視野拡大に必要な凹レンズの屈折力

Dioptric power of concave lens to expand the restricted visual field


Visual field is restricted by the eye diseases such as retinitis pigmentosa or glaucoma. Restricted field causes very narrow tunnel vision. We can calculate the appropriate dioptric power of the concave lens and eye-to-lens distance in relation to the diameter of the lens and the degree of visual field to determine the enhancement of the visual field.

レンズ直径(m)[Diameter of the lens (m)]:
視野角(360度法)[Restricted visual field (degree)]:

屈折力(D)[Dioptric power(D)]:
レンズと眼間距離(m)[Eye-to-lens distance(m)]:



視野拡大に必要な凹レンズの屈折力(excelファイル)


正常視野
正常視野

求心性視野狭窄
求心性視野狭窄(約8度)
凹レンズ直径0.04m、視野角8度を入力して計算すると、適切な凹レンズの屈折力は-11D、レンズと眼間距離が30cmと出力される

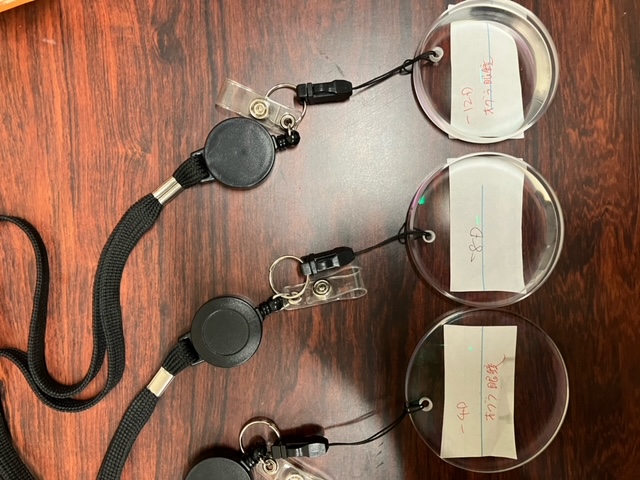

凹レンズ
-12Dの凹レンズを眼前30cmに持ってきた状態

視野拡大
視野狭窄の人が凹レンズを使うと正常視野と同じ範囲が見える
